dissoBOT®
Automated dissolution system
dissoBOT®

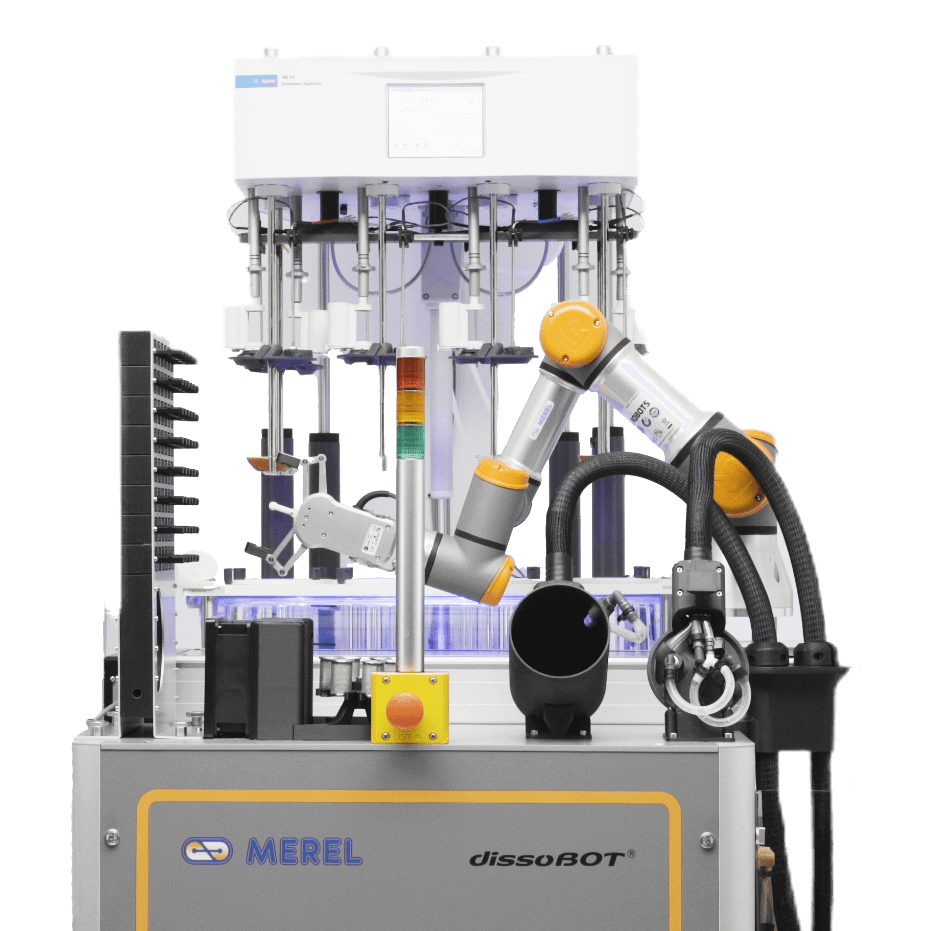

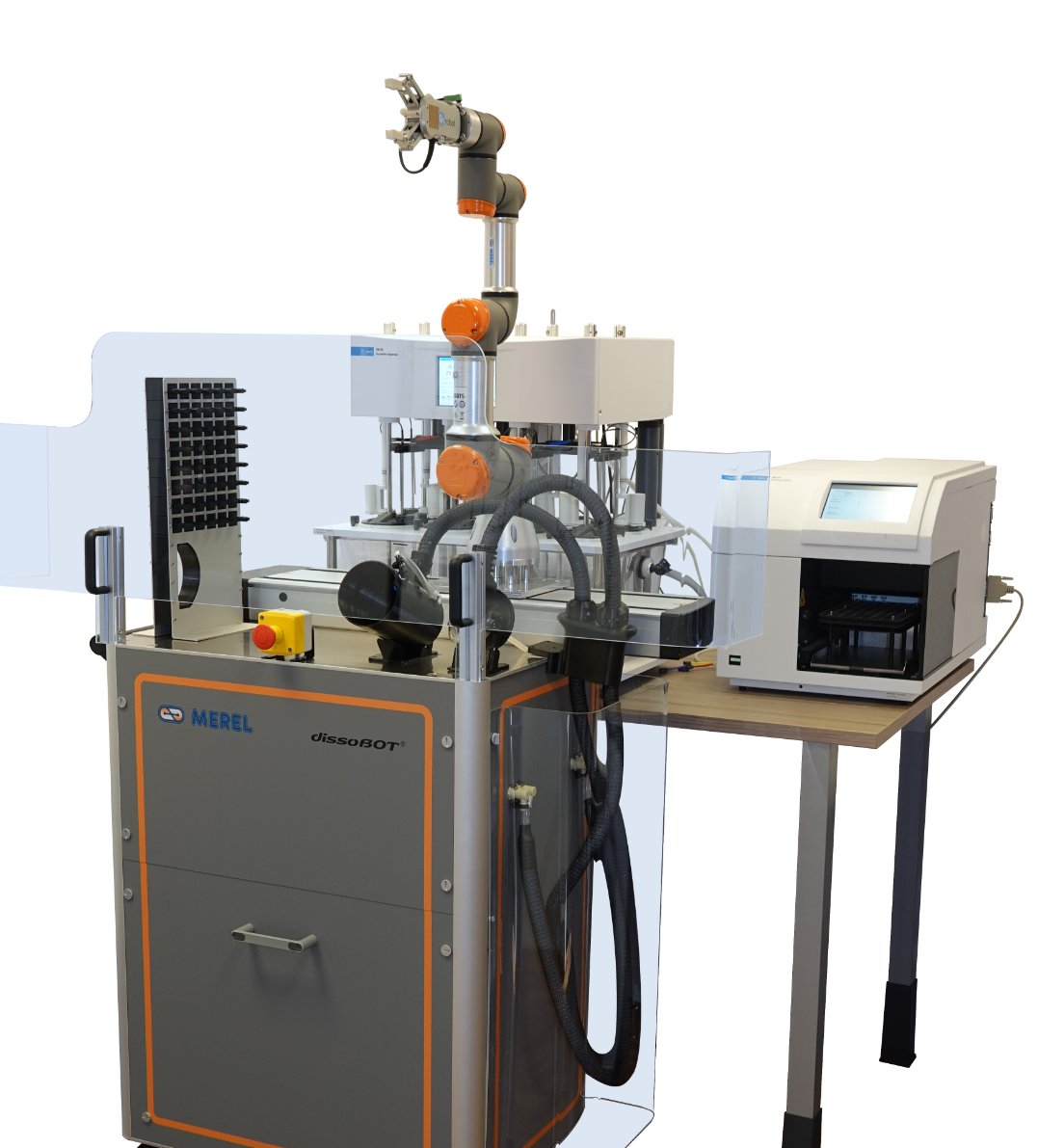

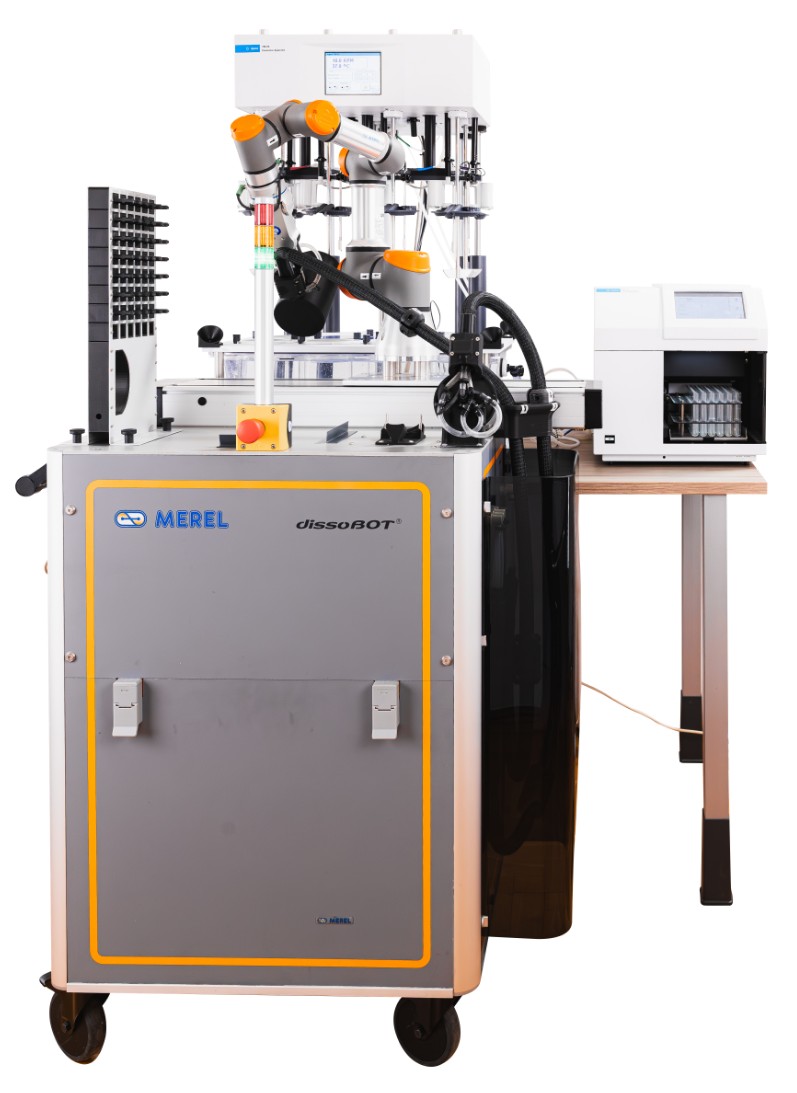

The world's first fully automated dissolution system with clip-on/off capability.
Advanced dissolution automation is built around world’s leading dissolution system – Agilent 708-DS Dissolution Apparatus and Agilent 850-DS Dissolution Sampling Station and optional filtration module.
Working principle

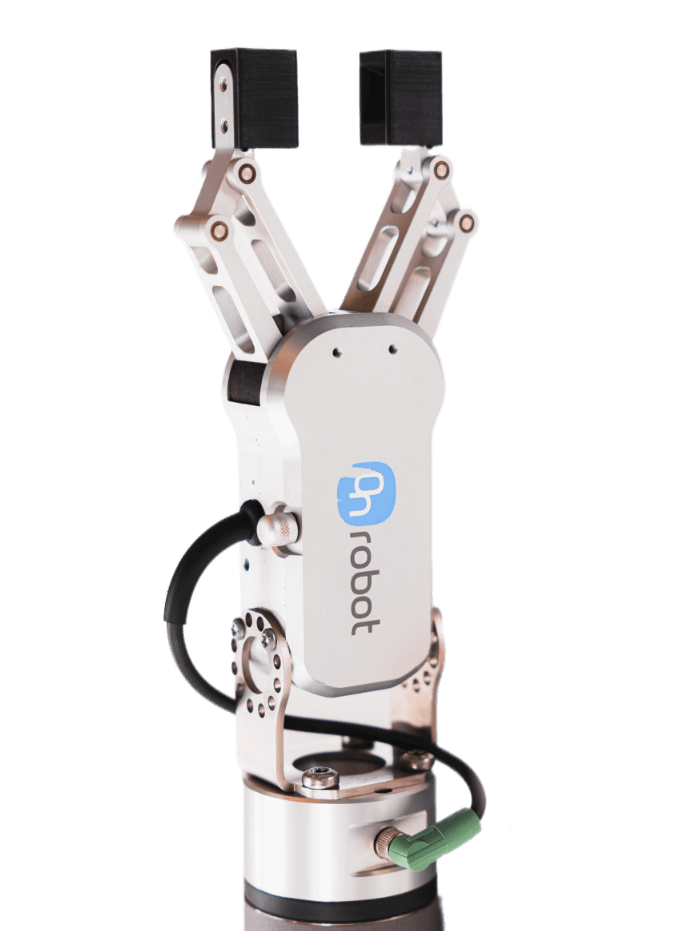

Latest technology in collaborative robotics
Advanced automation is performed with the help of the latest technology in collaborative robotics. The clip-on/off capability enables users to extend their working cycles on existing dissolution systems. There is no interference in the dissolution process and the clip-on procedure takes less than a minute. DissoBOT® system takes over the control of the dissolution apparatus and sampling station.
Working principle
Fully automated cycles
Advanced dissolution automation technology of dissoBOT® performs fully automated sequential cycles of cleaning, media dispensing, and introduction of new dosage forms to the dissolution apparatus.
The dissolution process
Automatically activated dissolution process.

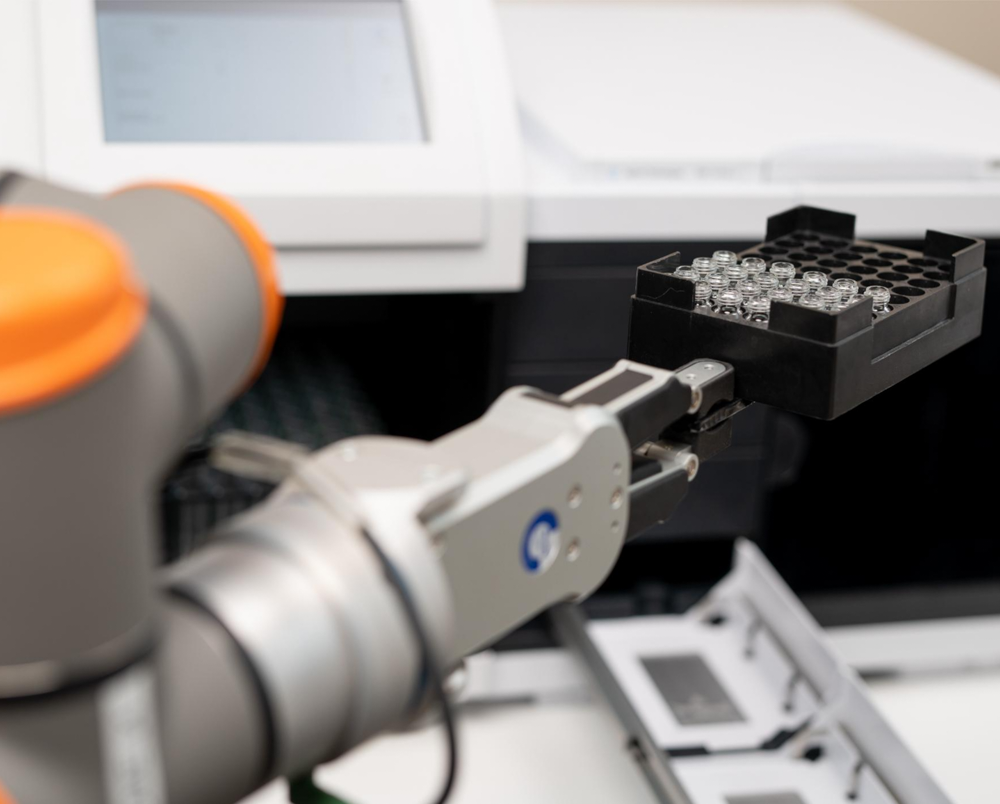

When dissoBOT® takes care of cleaning, media dispensing and dosage forms introduction, it is time for a dissolution process. The Dosage Delivery Module (DDM) is activated automatically. The dissolution itself is performed with standard 708-DS Dissolution Apparatus featuring a smooth-operating, motorized lift for reproducibility and integration with automated systems. Sampling is performed with an automated sampling manifold using the 850- DS Dissolution Sampling Station and optional filtration module. The system collects samples into test tubes, HPLC vials or well plates for subsequent analysis. Temperature is monitored with precise in-vessel monitoring AutoTemp. The individual vessel values may be documented initially, at each pre-programmed time point, and after the test has concluded.
Highlights
System Functionality
Overview
- Clip-on/off platform with table-top collaborative robot
- Sequential cleaning, media dispensing and samples introduction
- Standard Agilent 708-DS Dissolution Apparatus and 850-DS Dissolution Sampling Station
- Suitable for Apparatus 2 (paddles) and Apparatus 1 (baskets)
- Internal tanks and external connections
Technical information
Specifications
-
Number of Working Positions
Up to 6 vessels
-
Number of Samples
Up to 8 batches of 6 samples
-
Number of Sampling Points
Up to 16
-
Internal Rinse Container
47 L (12.4 gal)
-
Internal Media Container
47 L (12.4 gal)
-
External Waste Container
100 L (26.4 gal) – optional
-
External Rinse Connection
Optional
-
External Media Connection
Optional
-
Media Dispense Principle
Volumetric media dispensing with dissoDOSE® technology
-
Media Dispensing Accuracy
< 1% (range from 400 mL to 1000 mL dispense)
-
Suitable for Methods
Apparatus 2 (paddles) and Apparatus 1 (baskets)
-
Media Types
Compatible with all typical dissolution media containing surfactants
-
Filtration Options
Cannula filters: 10, 35, and 70 μm; Filter plates: 0.45 μm
-
Media Replacement
Standard, up to 100% of sample removed
-
Sampling Accuracy
10 mL 2.5%
-
Sample Volume per Vial/Tube
0.1–14 mL (up to 28 mL with dual sample)
-
Sample Frequency
Method specific with minimum of 2 minutes
-
Evaporation
Less than 1% evaporative loss under specific conditions
-
Water Bath Temperature Range
Ambient +5 to 55 °C
-
Probe Accuracy
0.1 °C
-
Spindle Speed Range
10-250 RPM
-
Speed Accuracy
1% over 25 RPM, 2% 10-25 RPM
-
Speed Selection
Motorized drive
-
Spindle Shaft Material
Stainless steel
-
Dissolution Drive Unit Lift
Dosage Delivery Module (DDM), Autosampling, AutoTemp
dissoBOT®
Advanced Dissolution
Automation Module
-
Operating Height
190 cm
-
Operating Width
135 cm
-
Operating Depth
70 cm
-
Weight (Machine Dry)
50 kg
dissoBOT®
Advanced Dissolution
Automation Module
-
Width
62.2 cm
-
Operating Height
67.95 cm
-
Clearance Height
99.06 cm
-
Depth
59 cm
-
Weight
54.4 kg
dissoBOT®
Advanced Dissolution
Automation Module
-
Operating Height
190 cm
-
Operating Width
135 cm
-
Operating Depth
70 cm
-
Weight (Machine Dry)
50 kg
